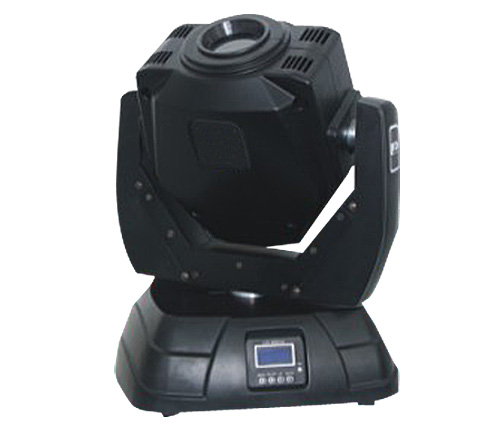

Technical reference number
Voltage: AC 90 v ~ 90 v, 50 hz ~ 60 hz
Total power: 75 w
Bulb: adopting the high-power white light 75 w lamp bead Luminus companies in the United States
The control channel: 12 ch
Color wheel: 7 color + white light, adjustable speed, running water and pattern jitter effects, positive and negative rotation function
Prism: rotating speed, the direction variable
Focus: 2 meters to infinite electric adjustment
Projection Angle: 13 degrees
The stroboscopic light: 0 ~ 100% linear dimming, 1 ~ 30 times per second, high-speed electronic stroboscopic effect
Rotation Angle: horizontal (X) 0 ° ~ 540 ° with automatic error correction function, 10 bit adjust
Vertical (Y) 0 ° ~ 270 ° with automatic error correction function, 10 bit adjust
Control mode: the DMX 512 international standard signal control, voice control, automatic running, master and slave connection mode
Size: 340 * 280 * 430 mm net weight: 9.5 kg
